SQ - Routing Microphones to EQ Groups

SQ - Routing Microphones to EQ Groups

Routing Microphones to EQ

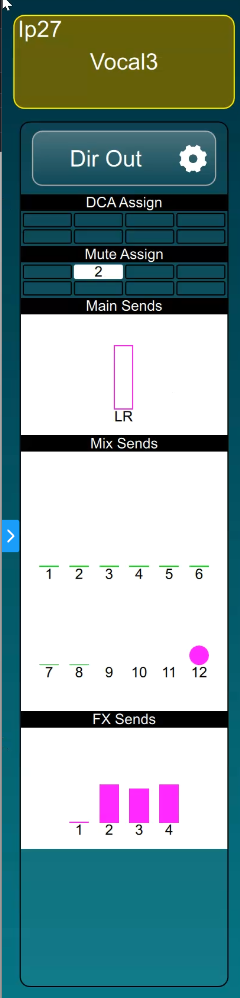

  1. Select the desired mic channel.
    Begin by choosing the channel you want to route.

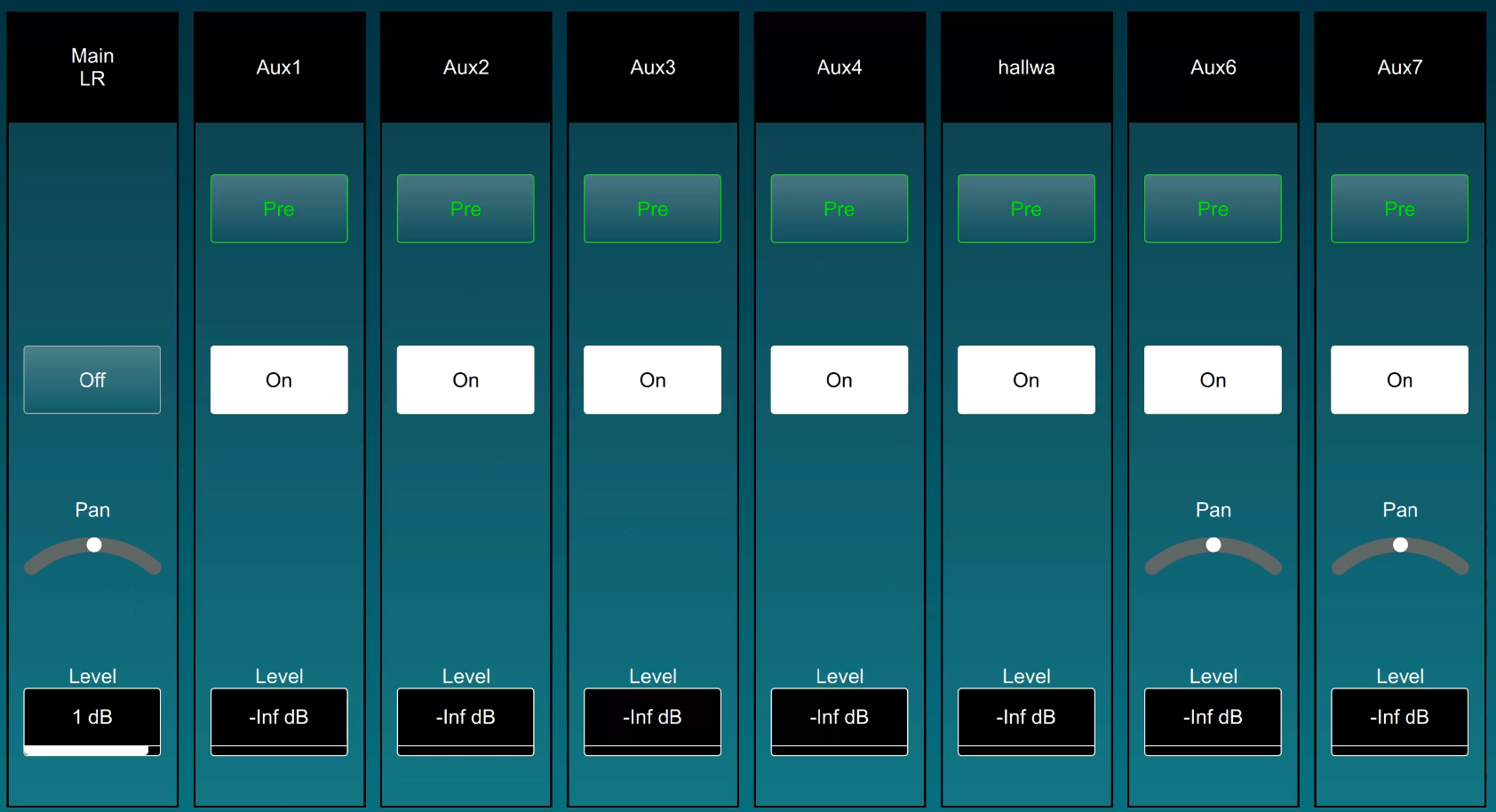

  2. Open the Routing tab.
    Navigate to the Routing section. If Aux 1, Aux 2, etc. aren’t visible, click on any section to refresh the view.


       3. Re-select the channel.
           After refreshing, select the same channel again to ensure proper routing options appear.

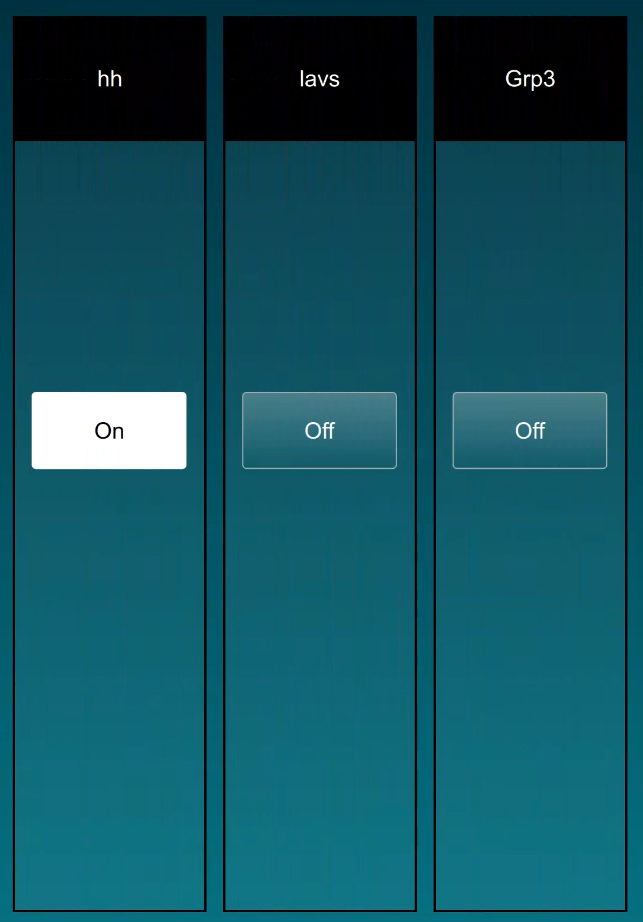

      4. Scroll to the 'hh' and 'lavs' section.
           Continue scrolling until you reach the section labeled “hh” (handheld) and “lavs” (lavalier).

      5. Enable routing to EQ.
          Turn on the appropriate option to send that mic channel to its corresponding EQ path.
